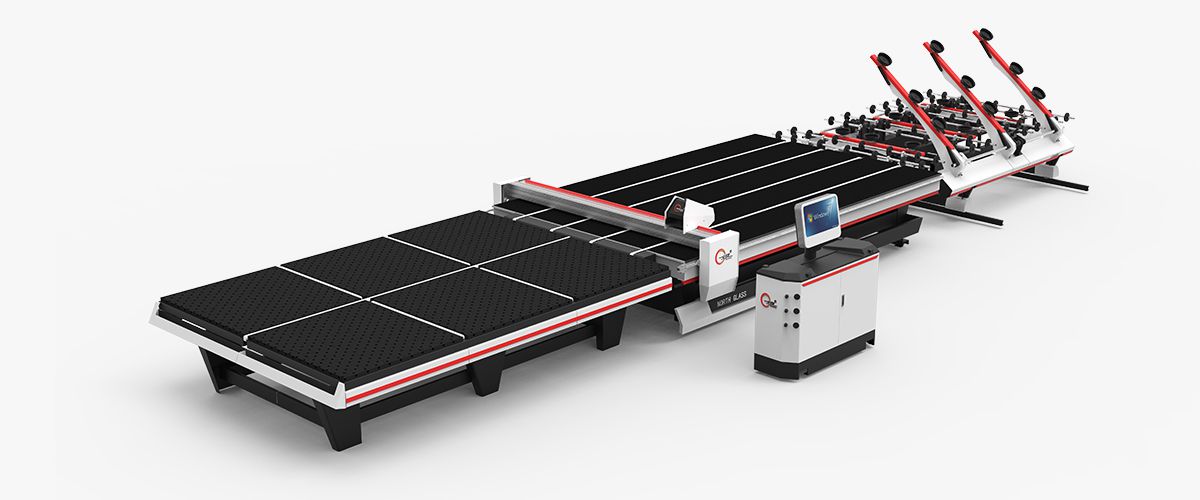

Glas.c cutting system consists of following machines and systems:
Working station loading: loading glasses according to the working station, suitable for economic mass production, single station or multi-station is optional.
Loading machine: loading glass from left side, right side or multi-stations, manual loading or automatic loading is optional.
Cutting machine: achieving best precision dynamic XYZ cutting and integrating loading &unloading.
Break-out table: conveying glass by air-cushion(or belt) and integrating assistant or automatic unloading.
Automatic breaking machine: breaking glass at X/Y/Z direction automatically and integrating long edge turning.
Precision assurance: low power servo motor+ acceleration/deceleration curve control + reasonable reduction ratio selection.
Reliability assurance: load-bearing machine table + light cutting bridge + independent side beam + double-motor driving.
Max cutting size: 2850×4200mm ,3300×6000mm
Min. cutting size: 1000×1500mm
Cutting thickness: 2-25mm
Convey speed: 40m/min
Cutting speed: max 180m/min
Working beat: 40-65s
