Ring Type Glass Sorter System

Optional Color:

Application

Mainly used for glass storage, loading, unloading and sorting in electronics, appliances and shower industry. It can stably and efficiently realize the automatic processing mode between each process.

Request a Quote

Designed for automated glass processing to ensure efficient storage and sorting glasses for various industries

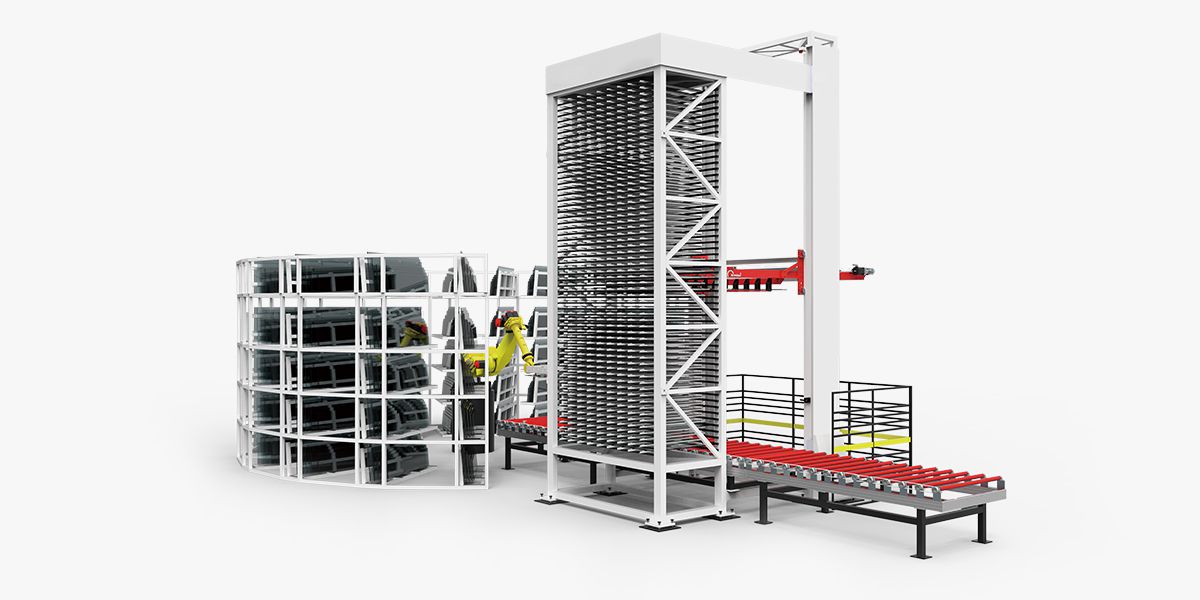

The ring type glass sorter System comprises a horizontal glass inserter, a ring sorter, conveyors, and auxiliary equipment. Each glass piece can be individually accessed in the horizontal inserter, while the ring sorter allows for categorized storage and retrieval.

This system is widely used in the electronic product & household appliances manufacturing, and shower glass processing industries for stacking, storing, and sorting glass, ensuring stable and efficient automation between processes.

Specifications

Max. glass size: 2200×1200mm

Min. glass size: 1500×150mm

Glass thickness: 4-12mm

Circle time: 12-20s

Storage layers: 60

Storage pieces: approx. 3000 pieces
