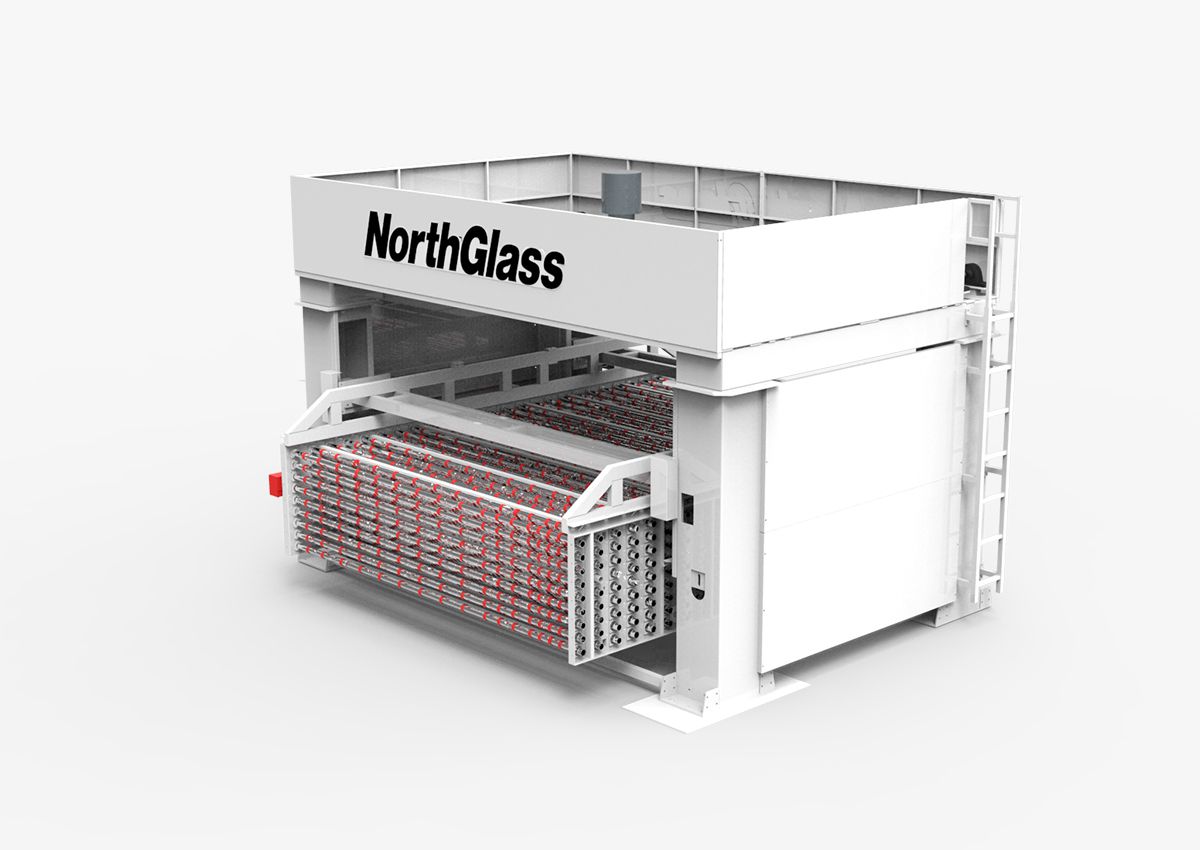

Horizontal Glass Sorter

Optional Color:

The horizontal glass sorter efficiently handles batch processing of various glass sizes, ensuring that glass pieces of the same or similar dimensions are sequentially fed to the edging machine. This process minimizes the need for frequent width adjustments and reduces waiting time, significantly enhancing the efficiency of both the edging machine and the overall production process by ensuring a steady and orderly flow of glass pieces.

• Max. glass size: 3000×2500mm/3000×2000mm
• Min. glass size: 500×500mm
• Glass thickness: 3-19mm
• Storage layers: 9 layers or 20 layers (1000mm pit required)
• Circle time: 10-15s
