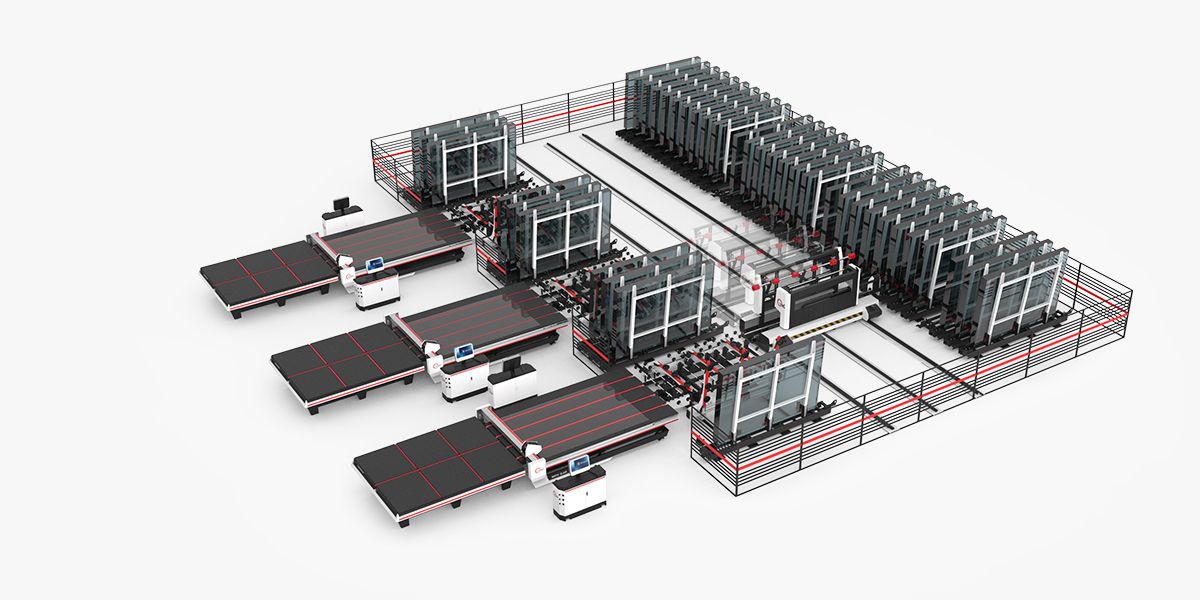

Managing dozens of full raw glass packages and dispatching each package by shuttle to 1-6 cutting lines; achieving best cutting efficiency and lowering full package glass loading risk.
Application Range: Applying for large scale batch jobs, avoiding breaking off during cutting caused by raw glass dispatch, improving glass using ratio as many cutting lines working together.
Driven mode: double servo motor+rack&gear
Glass Size: 2850×4200mm, 3300×6000mm, 3300×8000mm
Data transmission: Industrial WIFI
Power distribution: carbon brush sliding wire
Compressed air: 200NL/min
Pulling speed: 40m/min
Walking speed: 60m/min
Racks Depth: 350mm
Maximum Loading Weight: 5T
Ground Requirement: 5kg/ cm2
Ground Levelness: ±15mm
