Pre-processing Equipment for Auto Glass and Industrial Glass

This product has been discontinued and removed from our shelves.
Car Sidelight and Quarter Window Processing Line
Car Sidelight and Quarter Window Processing Line

The full line contains the following equipments: automatic loading station,shuttle conveyor 1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor 3, drilling machine 1, shuttle conveyor 4, drilling machine 2, shuttle conveyor 5.

Specifications

  • Model No.: NJ-MCBGD1085
  • Max. glass size: 1000M*850MM
  • Min. glass size: 300MM*300MM
  • Speed (max.size): 20S/P
  • Processing thickness: 2-6MM
  • Processing accuracy (circum): ±0.15MM
Car Windshield Preprocessing Line
Car Windshield Preprocessing Line

The full line contains the following equipments: automatic loading station, shuttle conveyor 1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor, drilling machine, shuttle conveyor, drilling machine, shuttle conveyor 3.

Specifications

  • Model No.: NJ-QBM1318
  • Max. glass size: 1300M*1800MM
  • Min. glass size: 700MM*650MM
  • Speed (max.size): 24S/P
  • Processing thickness: 2-6MM
  • Processing accuracy (circum): ±0.15MM
Truck and Bus Windshield Preprocessing Line
Truck and Bus Windshield Preprocessing Line

The full line contains the following equipments: automatic loading station, shuttle conveyor 1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor 3.

Specifications

  • Model No.: NJ-QBM1322
  • Max. glass size: 1300M*2250MM
  • Min. glass size: 900MM*700MM
  • Speed (max.size): 35S/P
  • Processing thickness: 2-6MM
  • Processing accuracy (circum): ±0.15MM
Home Appliance Glass Preprocessing Line
Home Appliance Glass Preprocessing Line

The full line contains the following equipments: automatic loading station, shuttle conveyor1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor 3, drilling machine 1, shuttle conveyor 4, drilling machine 2, shuttle conveyor 5.

Specifications

  • Model No.: NJ-QBMZ8013
  • Max. glass size: 800M*1300MM
  • Min. glass size: 300MM*300MM
  • Speed (max.size): 12S/P
  • Processing thickness: 2-6MM
  • Processing accuracy (circum): ±0.15MM
Touch Photovoltaic Glass Preprocessing Line
Touch Photovoltaic Glass Preprocessing Line

The full line contains the following equipments: automatic loading station, shuttle conveyor1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor 3.

Specifications

  • Model No.: NJ-QBM1322
  • Max. glass size: 1300M*2250MM
  • Min. glass size: 900MM*700MM
  • Speed (max.size): 35S/P
  • Processing thickness: 2-6MM
  • Processing accuracy (circum): ±0.15MM

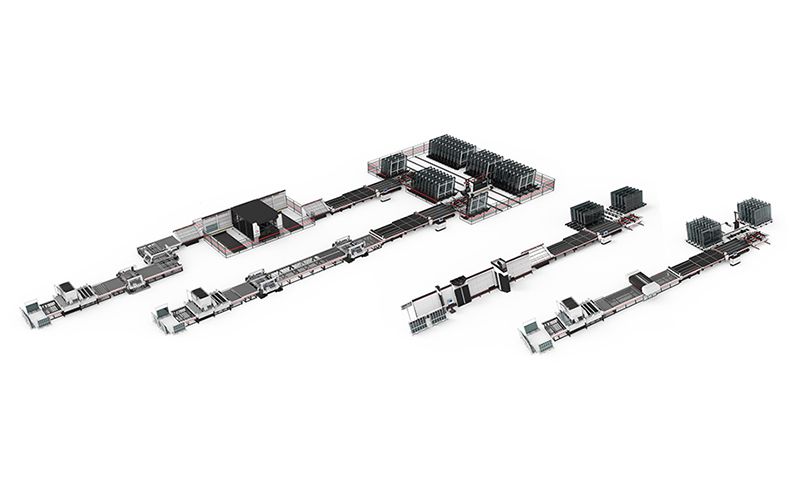

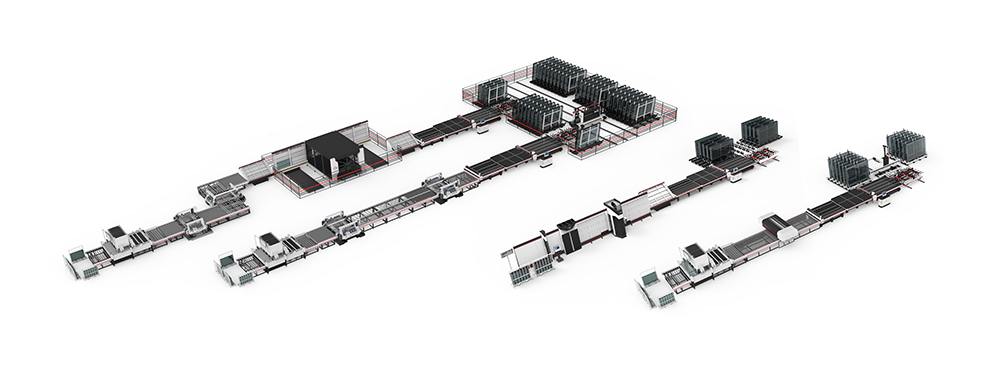

Automotive glass preprocessing line which consists of automatic loading, cutting, breaking, grinding and transport is whole automotive glass preprocessing equipment. Taking possible situations into consideration, preprocessing line is designed according to client's requirements.
