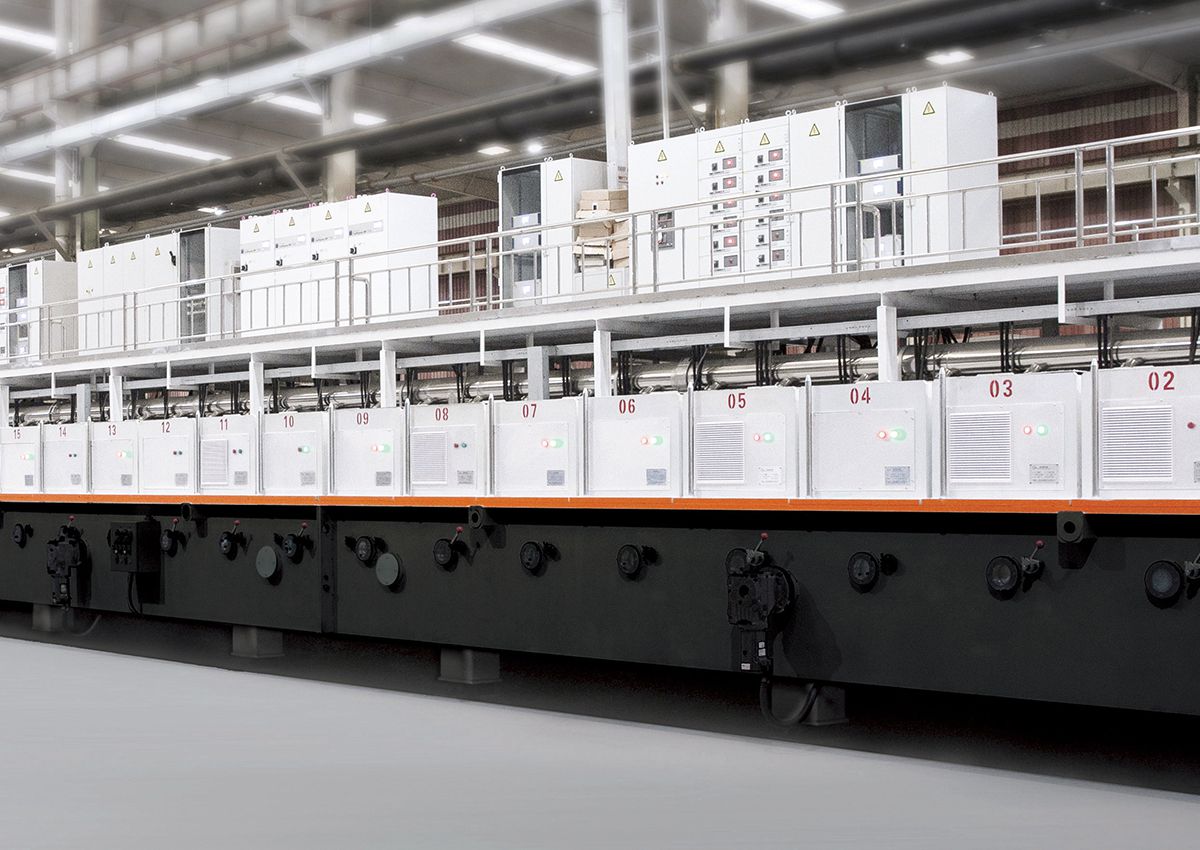

Northglass horizontal mirror coating machine is applied to deposit the metal films or metal films & metal oxide films on the surface of glass by sputtering, and then to paint the protective coating film on it. The machine integrates different processes on one line, such as washing, coating, painting, drying and cooling.It is used to produce the environmental-friendly Al mirror, Ag mirror, color mirror and decorative mirror.
Substrate type: float glass, tempered glass and special pretreated flat glass, etc.
Substrate size: Max. 2440×3660mm (customizable)
Substrate thickness: 4-10mm(customizable)
Cycle time: 30-120s
Ultimate pressure: < 8E-6mbar
Loading and unloading: automatic or manual
Paint layer quantity: one or two
